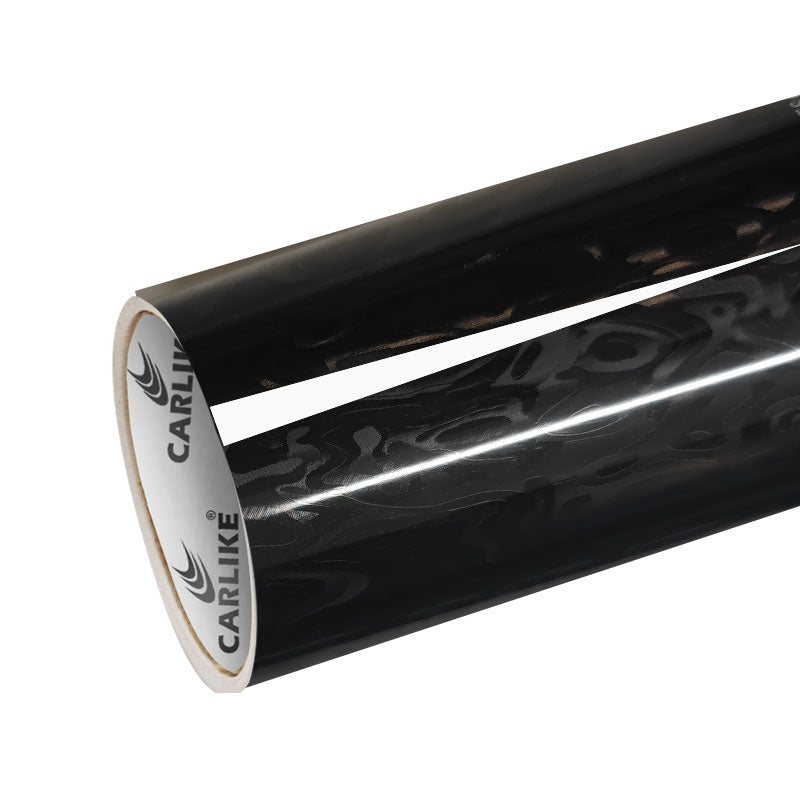

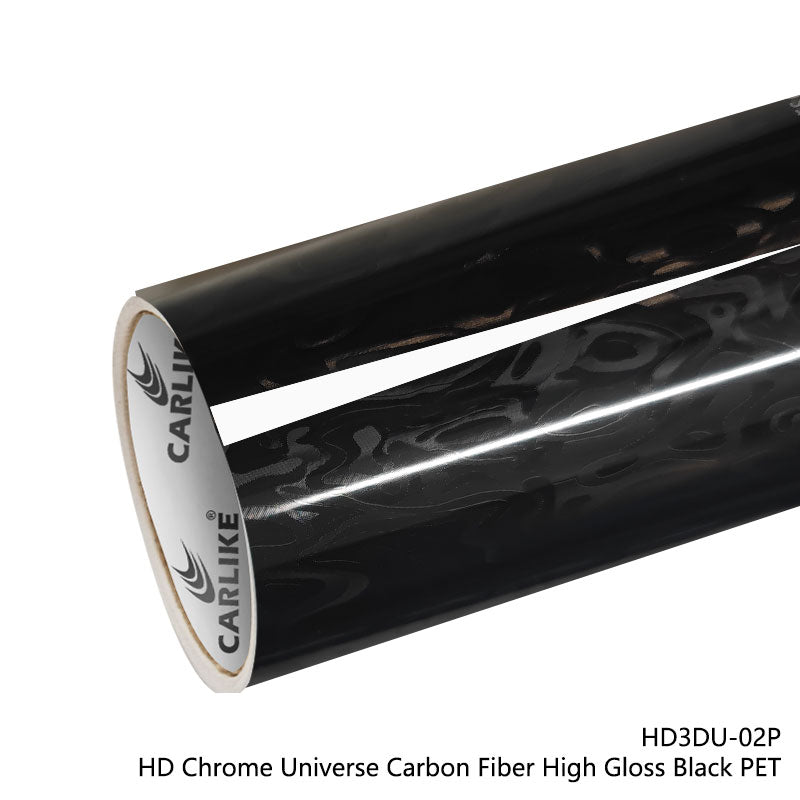

CARLIKE CL-HD3DU-03P HD Chrome Universe Carbon Fiber Gloss Tungsten Steel Vinyl PET Liner
Series: 3000P
Brand: CARLIKE
Color: HD Chrome Universe Carbon Fiber High Gloss Black PET
Model number: CL-HD3DU-02P
Characteristic: Super stretch, incredible restorable
Performance level: Premium+
Film produce technology: Calendered
Film thickness: 160micron, 6.4mil(with glue)
Release paper: 100G PET
Adhesive thickness: 30μm
Air bubble free: Yes
Application: Car wrap
Application temperature: From +80°С to +120°С
Temperature resistance: From -40°С to +120°С
Storing period: 2 years if stored in +10°С to +25°С, relative humidity 50%, in original package, away from direct sunlight, clean and dry place
Package: Full roll width 1.52m, length 17m, weight 13KG
Packing size: 1.55x0.18x0.18m
Remark: the full roll 1.52x17M/5x56FT usually is enough for wrap a full sedan or SUV. If your car is larger, please choose 1.52x23M/5x75FT, we will send 1.52x6M/5x19FT + 1.52x17M/5x56FT.
Quality warranty: 2 Years, during the quality warranty period, the film surface has no obvious fading, no cracking, and no residual glue on the car paint after removable.
| Data Sheet | |
| Surface | Opaque |
| Substrate material |
130Microns High Polymeric PVC |
| Pressure sensitive adhesive |
30μm Solvent-based Removable |
| Releaser liner | 100G PET High density air channels |
| Elongation at break |
300% |
| Tear strength | 37.2 N/10mm Test Method: ASTM D3759 |
| Glossiness | Gloss 95-110Gu Matte 5-30Gu |
| Viscosity | Initial tack:700-800g/25mm After 24 hours:1800-2000g/25mm After 3 months: 1500g/25mm |
| Peel strength | 2.5N/25mm Test Method: ASTM D3330 |
| Temperature resistance | -40°С to +120°С |
| Flourescent ultraviolet test |
Gray Level: 4-5 Test Method: ASTM D4329-13A |
Caution: The product images, colors on the screen are approximate. For the real representation of the product color, please check the color swatch.
1. Stunning Visual Impact & Design
The HD Chrome Universe Carbon Fiber High Gloss Black Vinyl features a sleek, high-gloss finish with a detailed carbon fiber pattern. Its reflective surface produces a deep, lustrous black shine, adding a modern and luxurious look to any vehicle or project.
2. Premium Materials & Construction
This vinyl is manufactured with advanced technology and includes a PET liner that provides excellent dimensional stability. The film’s thickness and high-quality adhesive ensure durability, flexibility, and easy handling during installation while preserving the glossy carbon fiber texture.
3. Easy Installation & Long-Lasting Protection
Equipped with air-release channels, this vinyl offers bubble-free, smooth application on curved and flat surfaces. It’s stretchable, repositionable, and removable without residue. Designed to last 3 to 5 years, it protects surfaces while maintaining its striking gloss and pattern.
