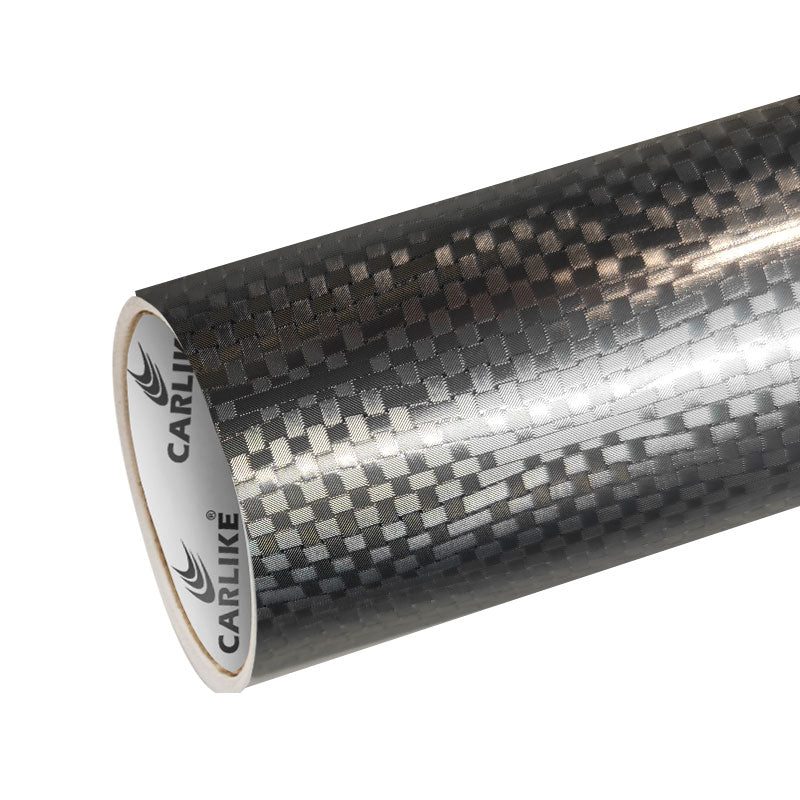

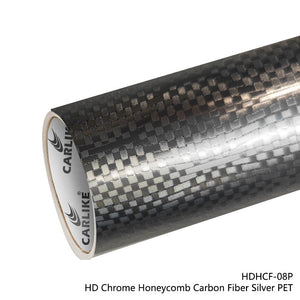

CARLIKE CL-HDHCF-08P HD Chrome Honeycomb Carbon Fiber Silver Vinyl PET Liner
Series: 3000P
Brand: CARLIKE
Color: HD Chrome Honeycomb Carbon Fiber Silver PET
Model number: CL-HDHCF-08P
Characteristic: Super stretch, incredible restorable
Performance level: Premium+
Film produce technology: Calendered
Film thickness: 160micron, 6.4mil(with glue)
Release paper: 100G PET
Adhesive thickness: 30μm
Air bubble free: Yes
Application: Car wrap
Application temperature: From +80°С to +120°С
Temperature resistance: From -40°С to +120°С
Storing period: 2 years if stored in +10°С to +25°С, relative humidity 50%, in original package, away from direct sunlight, clean and dry place
Package: Full roll width 1.52m, length 17m, weight 13KG
Packing size: 1.55x0.18x0.18m
Remark: the full roll 1.52x17M/5x56FT usually is enough for wrap a full sedan or SUV. If your car is larger, please choose 1.52x23M/5x75FT, we will send 1.52x6M/5x19FT + 1.52x17M/5x56FT.
Quality warranty: 2 Years, during the quality warranty period, the film surface has no obvious fading, no cracking, and no residual glue on the car paint after removable.
| Data Sheet | |
| Surface | Opaque |
| Substrate material |
130Microns High Polymeric PVC |
| Pressure sensitive adhesive |
30μm Solvent-based Removable |
| Releaser liner | 100G PET High density air channels |
| Elongation at break |
300% |
| Tear strength | 37.2 N/10mm Test Method: ASTM D3759 |
| Glossiness | Gloss 95-110Gu Matte 5-30Gu |
| Viscosity | Initial tack:700-800g/25mm After 24 hours:1800-2000g/25mm After 3 months: 1500g/25mm |
| Peel strength | 2.5N/25mm Test Method: ASTM D3330 |
| Temperature resistance | -40°С to +120°С |
| Flourescent ultraviolet test |
Gray Level: 4-5 Test Method: ASTM D4329-13A |
Caution: The product images, colors on the screen are approximate. For the real representation of the product color, please check the color swatch.
1. Sleek Silver Finish with Chrome Honeycomb Detailing
The HD Chrome Honeycomb Carbon Fiber Silver Vinyl combines a clean metallic silver base with a reflective chrome honeycomb pattern, offering a modern, high-tech visual depth. It’s perfect for creating a futuristic and sophisticated aesthetic on any vehicle surface.
2. PET Liner for Superior Stability and Application Accuracy
Backed with a PET release liner, this vinyl provides excellent dimensional stability and ensures the honeycomb design stays uniform during installation. It enhances handling on both flat areas and complex curves for professional-quality results.
3. Bubble-Free Installation and Reliable Outdoor Performance
Equipped with air-release channels, the vinyl allows for a bubble-free, smooth application. It is stretchable, repositionable, and removable without leaving residue. Built to last 3–5 years, it retains its sleek silver appearance even under various weather conditions.
