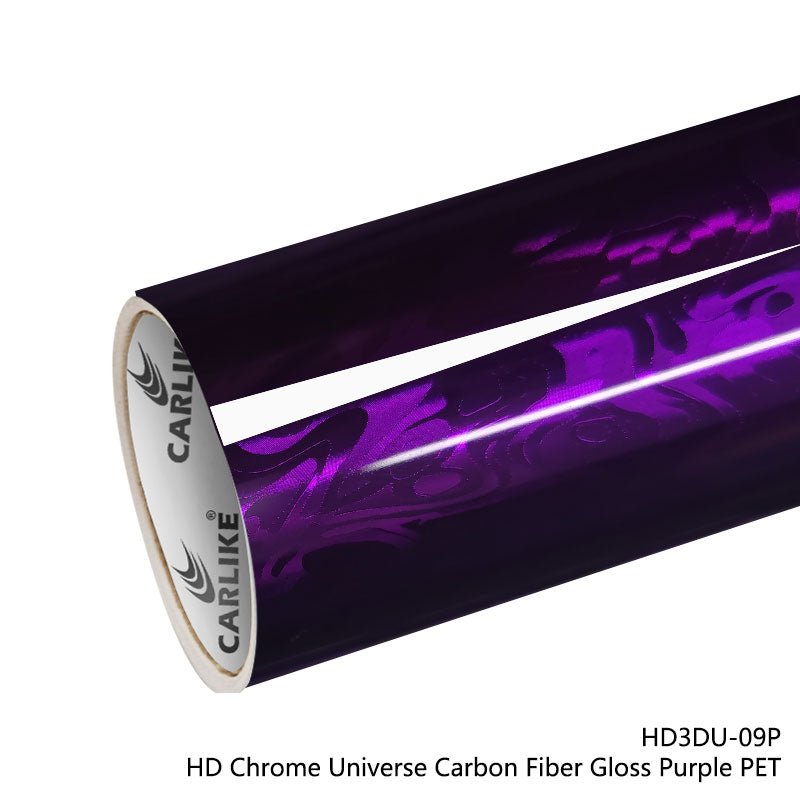

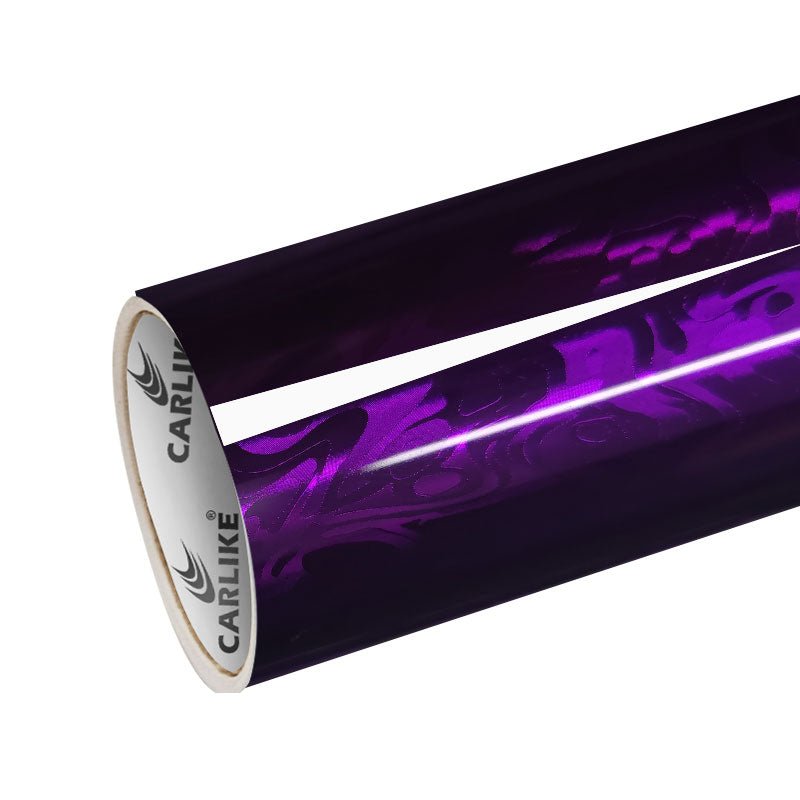

CARLIKE CL-HD3DU-09P HD Chrome Universe Carbon Fiber Gloss Purple Vinyl PET Liner
Series: 3000P
Brand: CARLIKE
Color: HD Chrome Universe Carbon Fiber Gloss Purple PET
Model number: CL-HD3DU-09P
Characteristic: Super stretch, incredible restorable
Performance level: Premium+
Film produce technology: Calendered
Film thickness: 160micron, 6.4mil(with glue)
Release paper: 100G PET
Adhesive thickness: 30μm
Air bubble free: Yes
Application: Car wrap
Application temperature: From +80°С to +120°С
Temperature resistance: From -40°С to +120°С
Storing period: 2 years if stored in +10°С to +25°С, relative humidity 50%, in original package, away from direct sunlight, clean and dry place
Package: Full roll width 1.52m, length 17m, weight 13KG
Packing size: 1.55x0.18x0.18m
Remark: the full roll 1.52x17M/5x56FT usually is enough for wrap a full sedan or SUV. If your car is larger, please choose 1.52x23M/5x75FT, we will send 1.52x6M/5x19FT + 1.52x17M/5x56FT.
Quality warranty: 2 Years, during the quality warranty period, the film surface has no obvious fading, no cracking, and no residual glue on the car paint after removable.
| Data Sheet | |
| Surface | Opaque |
| Substrate material |
130Microns High Polymeric PVC |
| Pressure sensitive adhesive |
30μm Solvent-based Removable |
| Releaser liner | 100G PET High density air channels |
| Elongation at break |
300% |
| Tear strength | 37.2 N/10mm Test Method: ASTM D3759 |
| Glossiness | Gloss 95-110Gu Matte 5-30Gu |
| Viscosity | Initial tack:700-800g/25mm After 24 hours:1800-2000g/25mm After 3 months: 1500g/25mm |
| Peel strength | 2.5N/25mm Test Method: ASTM D3330 |
| Temperature resistance | -40°С to +120°С |
| Flourescent ultraviolet test |
Gray Level: 4-5 Test Method: ASTM D4329-13A |
Caution: The product images, colors on the screen are approximate. For the real representation of the product color, please check the color swatch.
1. Striking Chrome Purple with Carbon Fiber Depth
The HD Chrome Universe Carbon Fiber Gloss Purple Vinyl delivers a vivid, high-gloss purple color blended with a 3D carbon fiber pattern. Its rich tone and chrome finish create a futuristic, luxurious effect ideal for vehicle wraps and standout design applications.
2. Engineered for Quality with PET Liner Support
Manufactured using advanced HD chrome technology, this vinyl features a PET liner for improved stability and precise handling. At 160 microns thick (6.4 mil including adhesive), it provides durability and flexibility for both flat surfaces and complex curves.
3. Easy to Apply and Built to Last
Equipped with air-release channels, the film offers a bubble-free, smooth installation experience. It is repositionable, stretchable, and removable without residue. With a lifespan of 3–5 years, the wrap maintains its bold color and glossy texture under various conditions.
