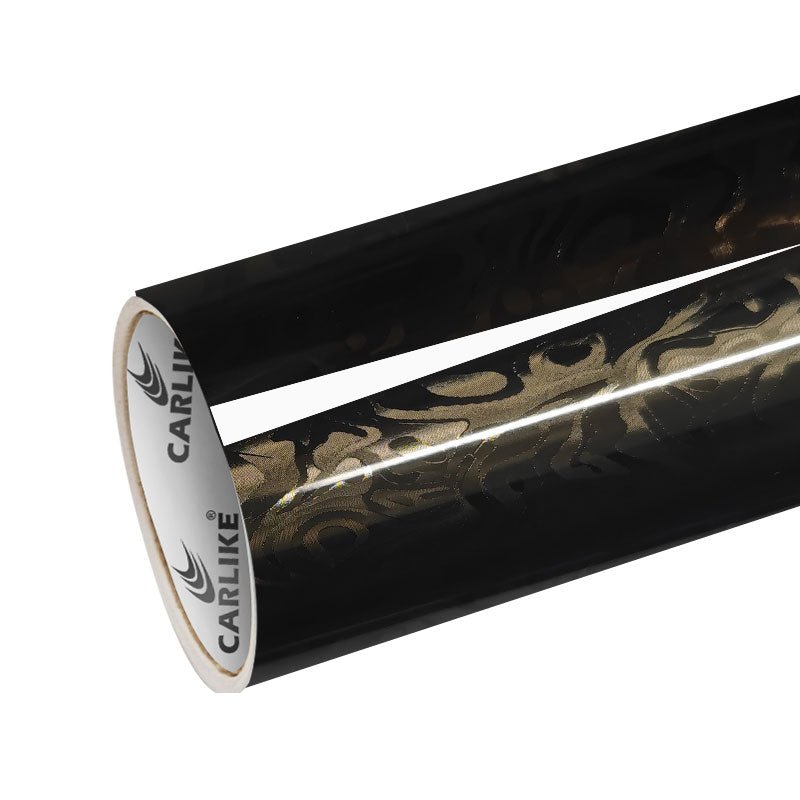

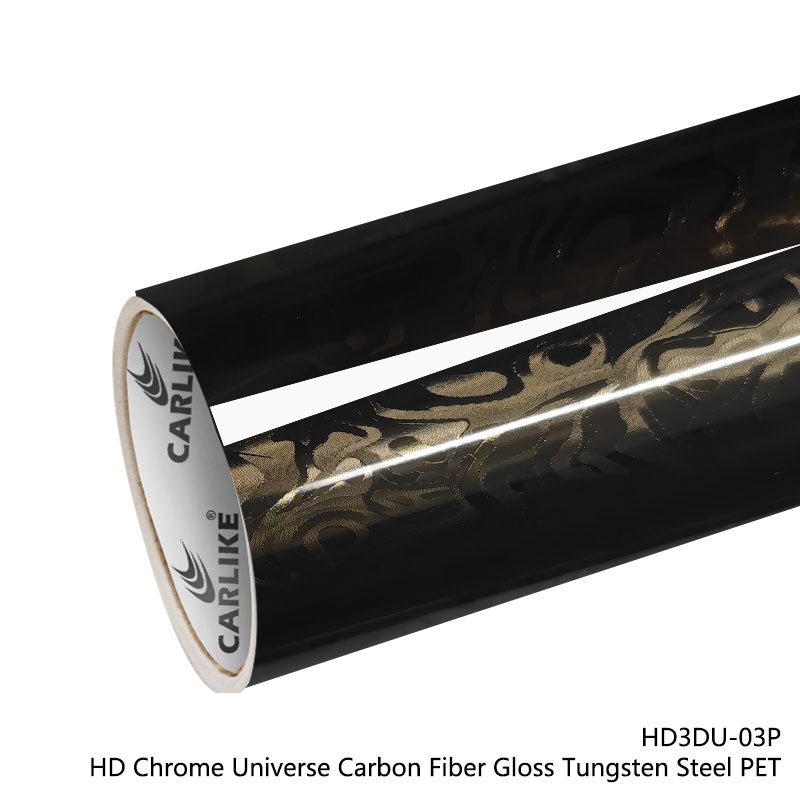

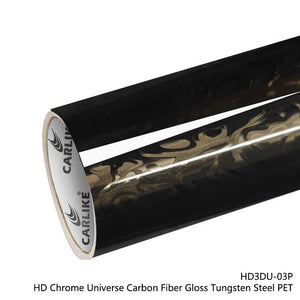

CARLIKE CL-HD3DU-03P HD Chrome Universe Carbon Fiber Gloss Tungsten Steel Vinyl PET Liner
Series: 3000P
Brand: CARLIKE
Color: HD Chrome Universe Carbon Fiber Gloss Tungsten Steel PET
Model number: CL-HD3DU-03P
Characteristic: Super stretch, incredible restorable
Performance level: Premium+
Film produce technology: Calendered
Film thickness: 160micron, 6.4mil(with glue)
Release paper: 100G PET
Adhesive thickness: 30μm
Air bubble free: Yes
Application: Car wrap
Application temperature: From +80°С to +120°С
Temperature resistance: From -40°С to +120°С
Storing period: 2 years if stored in +10°С to +25°С, relative humidity 50%, in original package, away from direct sunlight, clean and dry place
Package: Full roll width 1.52m, length 17m, weight 13KG
Packing size: 1.55x0.18x0.18m
Remark: the full roll 1.52x17M/5x56FT usually is enough for wrap a full sedan or SUV. If your car is larger, please choose 1.52x23M/5x75FT, we will send 1.52x6M/5x19FT + 1.52x17M/5x56FT.
Quality warranty: 2 Years, during the quality warranty period, the film surface has no obvious fading, no cracking, and no residual glue on the car paint after removable.
| Data Sheet | |
| Surface | Opaque |
| Substrate material |
130Microns High Polymeric PVC |
| Pressure sensitive adhesive |
30μm Solvent-based Removable |
| Releaser liner | 100G PET High density air channels |
| Elongation at break |
300% |
| Tear strength | 37.2 N/10mm Test Method: ASTM D3759 |
| Glossiness | Gloss 95-110Gu Matte 5-30Gu |
| Viscosity | Initial tack:700-800g/25mm After 24 hours:1800-2000g/25mm After 3 months: 1500g/25mm |
| Peel strength | 2.5N/25mm Test Method: ASTM D3330 |
| Temperature resistance | -40°С to +120°С |
| Flourescent ultraviolet test |
Gray Level: 4-5 Test Method: ASTM D4329-13A |
Caution: The product images, colors on the screen are approximate. For the real representation of the product color, please check the color swatch.
1. Modern Aesthetic with Industrial Elegance
The HD Chrome Universe Carbon Fiber Gloss Tungsten Steel Vinyl delivers a sleek, high-tech appearance with a tungsten steel-inspired tone. Its high-gloss carbon fiber texture adds depth and dimension, combining the futuristic appeal of chrome with the rugged elegance of metallic grey—ideal for vehicles, electronics, and industrial-themed customization.
2. Advanced Material Structure & Finish
Crafted with HD chrome technology, this vinyl features a PET liner that enhances stability and preserves the fine details of the carbon fiber pattern. The film has a thickness of approximately 160 microns (6.4 mil including adhesive), offering excellent durability while remaining flexible for installation on complex surfaces.
3. Simple Installation & Reliable Performance
Equipped with air-release channels, the wrap ensures bubble-free application and can be easily stretched or repositioned during installation. The film is removable without residue and designed for 3–5 years of outdoor durability, maintaining its high-gloss finish and protective function in a variety of conditions.
