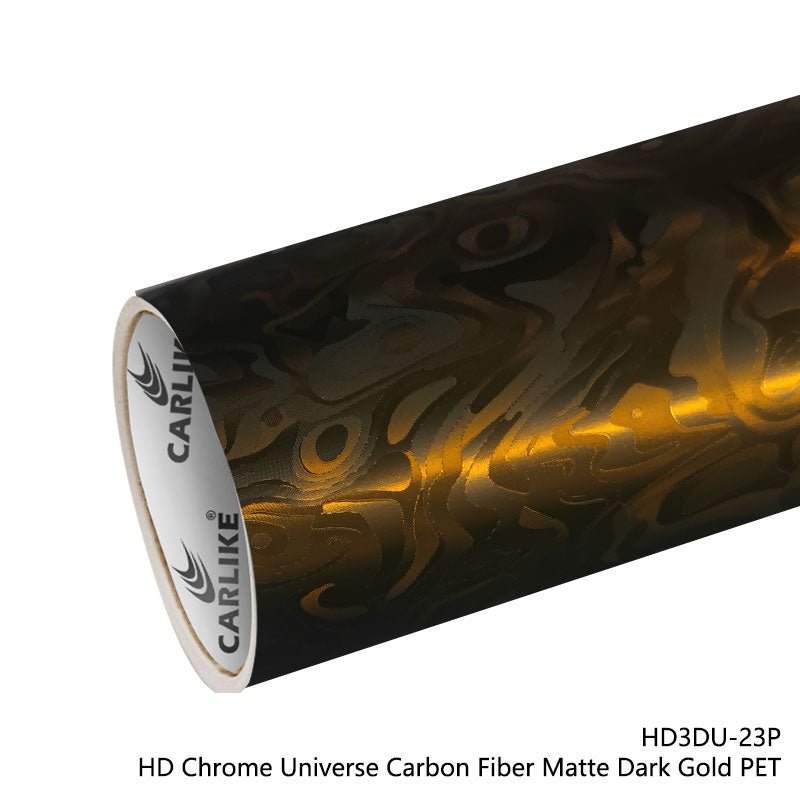

CARLIKE CL-HD3DU-23P HD Chrome Universe Carbon Fiber Matte Dark Gold Vinyl PET Liner
Series: 3000P
Brand: CARLIKE
Color: HD Chrome Universe Carbon Fiber Matte Dark Gold PET
Model number: CL-HD3DU-23P
Characteristic: Super stretch, incredible restorable
Performance level: Premium+
Film produce technology: Calendered
Film thickness: 160micron, 6.4mil(with glue)
Release paper: 100G PET
Adhesive thickness: 30μm
Air bubble free: Yes
Application: Car wrap
Application temperature: From +80°С to +120°С
Temperature resistance: From -40°С to +120°С
Storing period: 2 years if stored in +10°С to +25°С, relative humidity 50%, in original package, away from direct sunlight, clean and dry place
Package: Full roll width 1.52m, length 17m, weight 13KG
Packing size: 1.55x0.18x0.18m
Remark: the full roll 1.52x17M/5x56FT usually is enough for wrap a full sedan or SUV. If your car is larger, please choose 1.52x23M/5x75FT, we will send 1.52x6M/5x19FT + 1.52x17M/5x56FT.
Quality warranty: 2 Years, during the quality warranty period, the film surface has no obvious fading, no cracking, and no residual glue on the car paint after removable.
| Data Sheet | |
| Surface | Opaque |
| Substrate material |
130Microns High Polymeric PVC |
| Pressure sensitive adhesive |
30μm Solvent-based Removable |
| Releaser liner | 100G PET High density air channels |
| Elongation at break |
300% |
| Tear strength | 37.2 N/10mm Test Method: ASTM D3759 |
| Glossiness | Gloss 95-110Gu Matte 5-30Gu |
| Viscosity | Initial tack:700-800g/25mm After 24 hours:1800-2000g/25mm After 3 months: 1500g/25mm |
| Peel strength | 2.5N/25mm Test Method: ASTM D3330 |
| Temperature resistance | -40°С to +120°С |
| Flourescent ultraviolet test |
Gray Level: 4-5 Test Method: ASTM D4329-13A |
Caution: The product images, colors on the screen are approximate. For the real representation of the product color, please check the color swatch.
1. Refined Dark Gold with Carbon Fiber Texture
The HD Chrome Universe Carbon Fiber Matte Dark Gold Vinyl combines a deep, matte gold hue with a realistic carbon fiber weave. This elegant finish delivers a luxurious yet understated metallic look, perfect for premium automotive and design applications.
2. Engineered Precision with PET Liner Support
Crafted with HD chrome carbon fiber technology, this film includes a PET liner for excellent stability and easier handling. With a thickness of 160 microns (6.4 mil including adhesive), it offers strong protection and is flexible enough to conform to complex curves and surfaces.
3. Easy Application and Long-Term Durability
Designed with air-release channels, the vinyl ensures a bubble-free, clean installation. It's stretchable, repositionable, and removable without residue, making it ideal for both professionals and DIY users. Its 3–5 year durability ensures lasting visual impact and surface performance.
