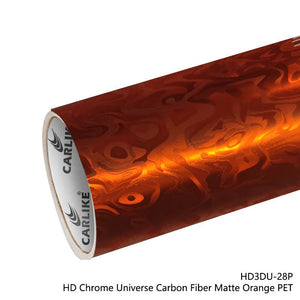

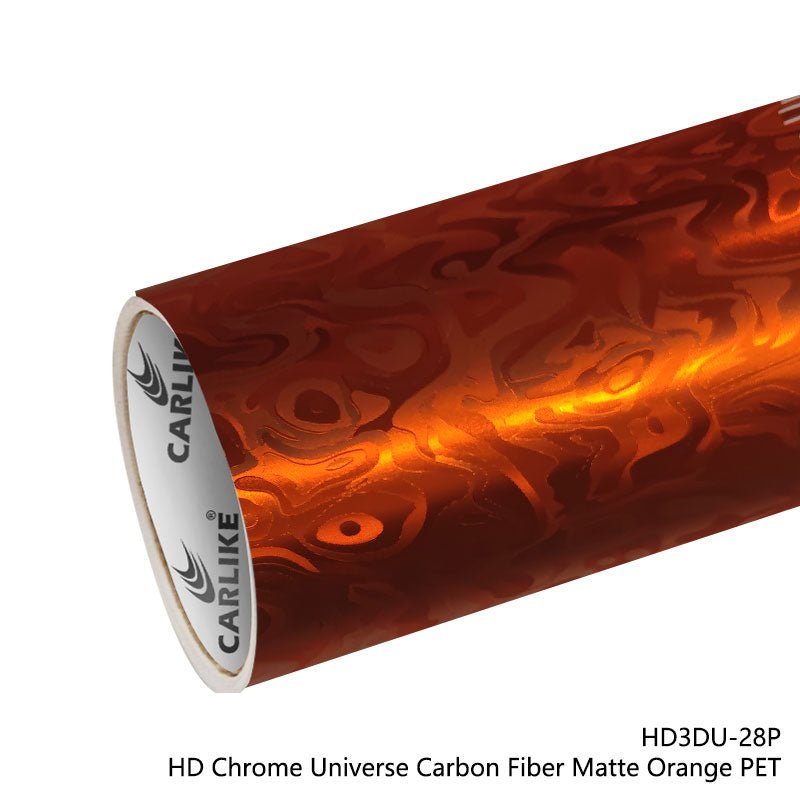

CARLIKE CL-HD3DU-28P HD Chrome Universe Carbon Fiber Matte Orange Vinyl PET Liner
Series: 3000P
Brand: CARLIKE
Color: HD Chrome Universe Carbon Fiber Matte Orange PET
Model number: CL-HD3DU-28P
Characteristic: Super stretch, incredible restorable
Performance level: Premium+
Film produce technology: Calendered
Film thickness: 160micron, 6.4mil(with glue)
Release paper: 100G PET
Adhesive thickness: 30μm
Air bubble free: Yes
Application: Car wrap
Application temperature: From +80°С to +120°С
Temperature resistance: From -40°С to +120°С
Storing period: 2 years if stored in +10°С to +25°С, relative humidity 50%, in original package, away from direct sunlight, clean and dry place
Package: Full roll width 1.52m, length 17m, weight 13KG
Packing size: 1.55x0.18x0.18m
Remark: the full roll 1.52x17M/5x56FT usually is enough for wrap a full sedan or SUV. If your car is larger, please choose 1.52x23M/5x75FT, we will send 1.52x6M/5x19FT + 1.52x17M/5x56FT.
Quality warranty: 2 Years, during the quality warranty period, the film surface has no obvious fading, no cracking, and no residual glue on the car paint after removable.
| Data Sheet | |
| Surface | Opaque |
| Substrate material |
130Microns High Polymeric PVC |
| Pressure sensitive adhesive |
30μm Solvent-based Removable |
| Releaser liner | 100G PET High density air channels |
| Elongation at break |
300% |
| Tear strength | 37.2 N/10mm Test Method: ASTM D3759 |
| Glossiness | Gloss 95-110Gu Matte 5-30Gu |
| Viscosity | Initial tack:700-800g/25mm After 24 hours:1800-2000g/25mm After 3 months: 1500g/25mm |
| Peel strength | 2.5N/25mm Test Method: ASTM D3330 |
| Temperature resistance | -40°С to +120°С |
| Flourescent ultraviolet test |
Gray Level: 4-5 Test Method: ASTM D4329-13A |
Caution: The product images, colors on the screen are approximate. For the real representation of the product color, please check the color swatch.
1. Striking Matte Orange with Carbon Fiber Appeal
The HD Chrome Universe Carbon Fiber Matte Orange Vinyl showcases a vivid matte orange tone, blended with a dynamic carbon fiber texture. It adds bold character and sporty energy to any wrap surface.
2. Advanced Build with PET Liner Support
Engineered with HD chrome carbon fiber technology, this wrap includes a PET liner for excellent form retention and ease of use. With a 160-micron (6.4 mil including adhesive) thickness, it balances durability and flexibility for flawless application.
3. Smooth Wrapping and Long-Term Resilience
Designed with air-release channels, it enables a bubble-free, seamless installation even on curves and edges. The film is stretchable, repositionable, and residue-free upon removal, offering 3–5 years of vibrant, reliable performance.
